Zund Z16和Zund Z17切割機鎢鋼刀片的區別是什么？

Zund Z16和Zund Z17切割機鎢鋼刀片的區別是什么？

 二維碼 26
作者：深圳歐野數控網址：https://www.china-oyea.com/index.php?id=3542

What is the difference between Zund Z16 and Zund Z17 tungsten carbide Knife blades?Zund Z16和Zund Z17鎢鋼刀片的區別是什么？

The Zund Z16 and Zund Z17 tungsten carbide knife blades are both designed for use in Zund automated cutting machines, but they have distinct differences in their specifications and applications:Zund Z16和Zund Z17硬質合金刀片均設計用于Zund自動切割機，但它們?cè)谝?guī)格和應用上有明顯的區別：

Zund Z16 Knife Blade 刀片
- Cutting Angle: 54° 切割角度：54°
- Maximum Cutting Depth: 7.4 mm最大切割深度：7.4毫米- Blade Thickness: 0.63 mm- 刀片厚度：0.63毫米- Blade Length: Typically around 26 mm刀片長度：通常約為26毫米- Shaft Width: Approximately 5.6 mm- 軸寬：約5.6毫米
- Materials: Suitable for cutting soft materials like canvas, self-adhesive vinyls, reflective vinyls, folding carton, magnetic foil, paper, polyester fabric, PVC banner, and foam board.- 材料：適用于切割柔軟材料，如帆布、自粘性乙烯基、反光乙烯基、折疊紙板箱、磁性膜、紙張、聚酯織物、PVC橫幅和泡沫板。- Tools: Compatible with Electric Oscillating Tool (EOT) and Pneumatic Oscillating Tool (POT).工具：兼容電動振蕩工具（EOT）和氣動振蕩工具（POT）。

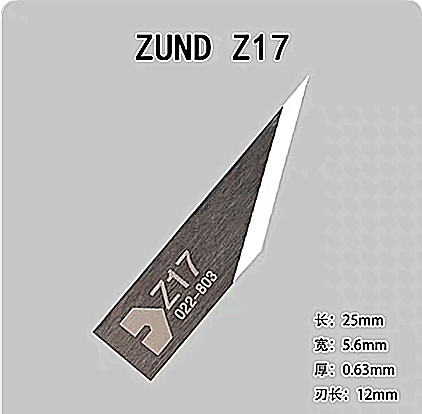

Zund Z17 Knife Blade 刀片
- Cutting Angle: 65° 切割角度：65°
- Maximum Cutting Depth: 12 mm最大切割深度：12毫米- Blade Thickness: 0.63 mm- 刀片厚度：0.63毫米- Materials - 材料 : Ideal for cutting thinner materials with a smaller overcut, exerting more drag force than the Z16. Suitable for materials like folding carton, gasket material, foam, leather, and various packaging materials.適用于切割較薄的材料，切口較小，比Z16具有更大的拖曳力。適合折疊紙箱、墊圈材料、泡沫、皮革以及各種包裝材料。- Tools: Also compatible with EOT and POT工具：也兼容EOT和POT.

Key Differences: 關鍵區別：
- Cutting Angle and Depth:切割角度和深度：Z17 has a steeper cutting angle (65°) and deeper cutting capability (12 mm) compared to Z16 (54° and 7.4 mm).與Z16相比，具有更陡峭的切割角度（65°）和更深的切割能力（12毫米），Z16為（54°和7.4毫米）。- Material Handling: - 物料搬運： Z17 is designed for thinner materials with a focus on precision and less overcut, while Z16 is more versatile for a broader range of soft materials.專為較薄材料設計，注重精確度和減少過切，而Z16則更通用，適用于更廣泛的軟質材料。- Drag Force: Z17 exerts more drag force, which can be beneficial for certain materials but may require more power or adjustment in cutting settings.- 拖曳力：Z17產生的拖曳力更大，這對某些材料可能是有益的，但可能需要更多的功率或在切割設置中進行調整。
